Introduction



Kit offered online by Alfonso X. Moreno at http://www.axmpaperspacescalemodels.com/

The recent successful flight of the Ares I-X made it kind of easy for me to get excited about a launch vehicle that I've never really been keen on. It's tall and thin and white -- and not too visually exciting. But that aside, I decided I wanted to build a model of the thing. Since I work in card, the choice of kits was fairly easy; Alfonso X. Moreno offers an excellent model of the Ares I-X at his great website, http://www.axmpaperspacescalemodels.com/ Even those of you who aren't card modelers should check out the site because he has great research diagrams sowing the changes mission-by-mission of the shuttle Orbiters, RSRMs and ETs.





Construction



Alfonso's model is in 1/144th scale, and my preferred scale for building launch vehicles is 1/96th. I downloaded the files to a thumbdrive and headed down to my local FedEx/Kinko's to have them enlarge the pages 150 percent to 1/96th scale. I had them copy the pages on a glossy coated text paper (often used for brochures) to better replicate the glossy surface of the real Ares I-X. Alfonso's parts scaled up excellently, with no fuzziness in the markings or other details.

The build was fairly straightforward, but I did use my usual "skin-on-tube" method of building the vehicle. I take the model's "skins" -- i.e., the outer surface of the vehicle -- and wrap them around model rocket tubes. The tube provides strength and rigidity and it also insures straightness. All those considerations are especially important on a launch vehicle as tall and thin as the Ares I-X.



  • Ares 1-X by David Hanners: Image
  • Ares 1-X by David Hanners: Image
  • Ares 1-X by David Hanners: Image
  • Ares 1-X by David Hanners: Image
  • Ares 1-X by David Hanners: Image
  • Ares 1-X by David Hanners: Image
  • Ares 1-X by David Hanners: Image
Thumbnail panels:
Now Loading



I couldn't find any model rocket tubes that were exactly the size I needed, but I found some that were a little oversize. Using techniques I learned from Rick Sternbach's excellent Saturn V Clinic, I figured out the size the tubes needed to be, then cut lengthwise strips out of the tubes I used for the First Stage and the Upper Stage Simulator. Once the strips were cut out, the edges of the cuts were glued together to form the new tubes, with rubber bands around them as they dried; I also backed the seam with paper to reinforce it. If done properly, the cardboard of the tubes "relaxes" into a circular shape. Once everything was dry, I applied some woodworking glue along the seam and sanded it when it was dry. The sanding further insured the tube was circular.

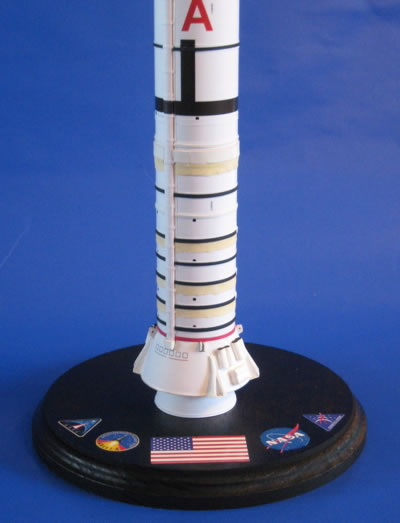

I then continued with construction, affixing the skins to the tubes with double-sided tape. Alfonso's kit builds into a great model, but at this larger scale, it calls out for some super-detailing, so I added bits and pieces throughout. On the aft skirt, I added the hold-down posts, Booster Tumble Motors and Booster Deceleration Motors and some other bits, as well as the flexible insulation curtain that rings the RSRM's nozzle.

On the First Stage, I detailed the systems tunnel, added the segment joints, stiffening rings and other details, and added detail Booster Tumble Motors and other details to the Frustum and Forward Skirt Extension. On the Upper Stage Simulator, I added various rings, a detailed systems tunnel, detailed the Roll Control System and fuel line, and I added various bits to the Spacecraft Adapter Assembly, and added Reaction Control Motor nozzles (made from the sliced-off pointy ends of round toothpicks) to the Service Module Assembly. Various bits were added to the Crew Module and Launch Abort System.


Image and Text Copyright © 2010 by David Hanners
Page Created 20 July, 2010
Last Updated 20 July, 2010
