Fairey Gannet ASW

Classic Airframes, 1/48 scale

Reviewed by Steven "Modeldad" Eisenman

Classic Airframes' 1/48 scale Fairey Gannet will be available online from Squadron

If ever there was a nation that was painfully aware of the effect of submarine warfare, it was Great Britain.  Near the end of the Second World War, it was clearly recognized that a dedicated anti-submarine warfare aircraft was needed, and the Fairey Firefly was just not going to be able to fulfill that role.

Specification GR. 175/45 was put out at the end of 1945 for a dedicated anti-submarine warfare aircraft that was also capable of anti-shipping capabilities.  Gr. 175/45 was also grounded in a technology that had been previously developed by Fairey, that was the use two engines, each with its own crankshaft to power co-axially mounted, contra-rotating props.  This had great advantage for carrier based aircraft in that there was the safety of two engines, rather than one; the engines could be mounted in the fuselage, rather than enlarging the wings to accommodate two propulsion units; and contra-rotating props eliminated the effect of propeller torque.  Another advantage of such an arrangement was that one engine could be shut down to conserve fuel and extend flight time, an important factor in long-range anti-submarine patrols.  With the improvements in turbo-engine design, the Armstrong Siddeley Mamba engine became the power plant of choice.  When Fairey coupled two together for its proposed Type Q (the Gannet) it became know as the “Double Mamba”.

Development of the Type Q began in 1946, but it was not until 19 June 1950 that the first Type Q actually engaged in flight deck trials on HMS Illustrious.  On that date, the Type Q became the first turbo-prop aircraft to takeoff and land on an aircraft carrier.  Nearly another three years would go by until the first production Gannet AS. 1 made it debut in June 1953 and two more years until the gannet entered operational unit service with 826 Squadron in January 1955.

The AS. 1 Gannet had a crew of three, pilot, observer and rearward facing radar operator.  Its offensive weapons were carried in the weapons bay, which could accommodate various combinations of torpedoes, depth charges, sea mines, conventional high-explosive bombs and sonobouys.  Four mounting points under the center section of each wing could be used for up to 24 unguided rockets.

The Classic Airframes Gannet ASW – AS.1 / AS.4 is the first primarily injected molded Gannet in 1/48 scale. It is a valuable addition to the growing number of Fleet Air Arm aircraft of the early Post-Second World War / Cold War period.

The injection molding is of the same smooth plastic as was used in the Wyvern.  The engraved detail is quite crisp and fine, but will not be lost under a coat of paint.  There is virtually no flash on the parts.  Clean up should be very quick.

Click the thumbnails below to view larger images:

As for the smooth nature of the plastic itself, this is due to the molds being highly polished.  In the case of the Wyvern, I found the smooth surface did not affect paint adhesion.  Some modelers may find the surface an advantage in that less time is spent getting a smooth surface for that perfect finish.

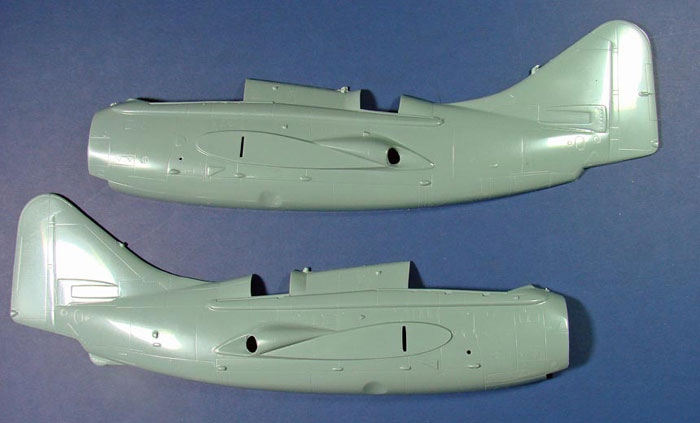

Interestingly, while the kit is designated as an AS. 1 / AS. 4, the fuselage is molded as an AS. 4.  However, the actual external difference between the 1 and the 4, for all intents and purposes, is merely the absence of two small portholes on each side of the AS. 4 aircraft, just in front of the radar operator’s cockpit.  But, it also seems that many AS. 1 aircraft had the portholes blanked out because of the glare that affected the radar screen.  If one wanted to do an early AS. 1, merely drill out the portholes and fill with Crystal Clear.  The location of the portholes can be seen on the paining guide.  The AS.4, basically, was the AS.1 with a more powerful engine.

The wings are also nicely detailed.  For some modelers, a light sanding of the trailing edge may be wanted to thin it a bit.  Even though the kit does not come with rocket rails, the underside of the wings have the attachment points clearly marked, so attaching after-market rails will not present a problem as to their location.  The question is whether anyone will do an aftermarket wing-fold set.

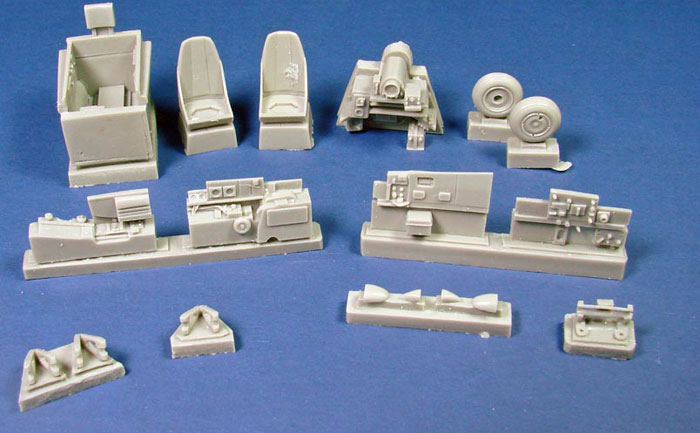

The resin pieces are nicely molded and provide for good cockpit detail.  The radar operator’s cockpit is molded as a single tub.  There appears to be only one potentially problematic pour block to contend with; that is resin part 11, the nose piece.  This piece may best be dealt with by sanding down the back surface on course sandpaper on a hard flat backing, such as glass, until it fits on the front of the fuselage.  The wheel well pieces present the usual problem of removing a pour block on top and sanding the well to fit within the wings.

Considering that one of the initial problems of the Type Q / Gannet was that it was a tail sitter, it looks like the kit will not be much different.  The kit appears to allow for good room in which to add nose weight.  In fact, the top of the nose gear housing is concave and appears perfectly designed to accept a fair amount of BB’s or lead fishing weights

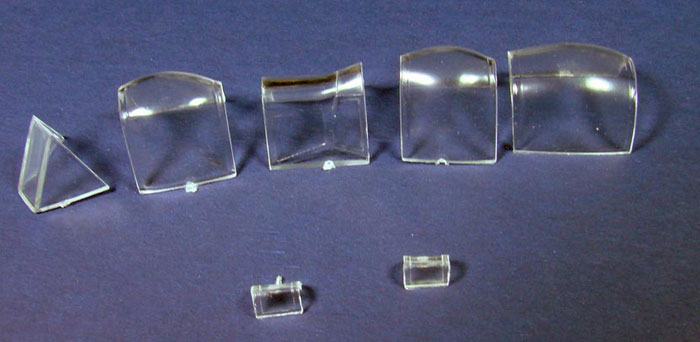

The clear parts clearly would benefit from a dipping in Future.  It would also appear that the canopies in this kit are a modeling anomalie.  At least the one over the radar operator’s cockpit is; for it sits quite nicely in the open position. The observer’s canopy also seems to fit well open, with a need to hold it in position as the glue sets.

Construction of this kit is quite straight forward and does not appear to be overly complex.  Assembly begins with the cockpits creating the two main tubs.  The back of the main cockpit creates a wing spar.

I would take issue with step 4.  Attaching the nose gear at this early stage creates an invitation to a snap-off disaster.  As with most modeling projects, putting on of the gear would be a something I would do as a final step.

One of the big complaints about the Wyvern was that the propeller blades were set in the aligned position, unless one did some cutting.  In the Gannet the fore and aft propeller units are separate and can be positioned as you want them.

Markings

There are markings for the aircraft of four different nations.  As for the color/colour scheme, all are in basic Extra Dark Sea Grey over Sky.

• 824 Squadron, HMS Ark Royal, Circa 1956.  This unit replaced its AS.1s with the AS. 4 by October 1956 and was the first unit to receive the AS.4

• 816 Squadron, Royal Australian Navy, HMAS Melbourne, circa mid-1960s.  The RAN operated the AS.1, which were delivered in 1956.  The AS.1 portholes were most likely blanked out.

• MFG 3 (Marinefliegergeschwader) Federal German Navy, circa 1980s (This appears to be a misprint and should read 1960s).  This aircraft is an AS.4 originally assigned to MFG 1.  When MFG 1 was placed under MFG 3 control, the aircraft retained their MFG 1 code of “UA”.

• Indonesian Navy, Circa 1962.  This aircraft is an AS.4.  The serial number as printed is not correct.  The decal has the serial number printed as A515, it should be AS 15, and there should be a space or dash between the AS and the 15.

I have not and cannot comment on the accuracy of this kit.  There are drawing in the Warpaint monograph, but questions have been raised about them, so I did not use them for reference purposes.  I do not have the +4 volume.  I also have never seen one in the “metal”.  However, the pieces seem to capture well the outline and appearance of the aircraft, as ugly as that is, as the aircraft appears in numerous photographs.  Comments are, of course, welcomed.

I may be wrong, and could wind up eating my words, but I get the impression that this just could just be a “shake and bake” limited run kit  (is that an oxymoron?).   Of course care must be taken, as there are no locating pins with which parts are aligned.

Regardless of what may follow, the Classic Airframes Gannet appears to be an excellent kit.

I am currently finishing up the CA Seahawk ( surprisingly a relatively easy build) and I welcome the addition of the Gannet to sit alongside the Seahwk and Wyvern.  It may look dumpy and even a bit odd with those seemingly undersized propellers, but this kit allows me to continue my love affair with ugly aircraft.

Highly Recommended.

Reference:

           Warpaint Series No. 23; Fairey Gannet; by Steve Hazel; Hall Park Books.

Thanks to Classic Airframes for the review sample.
