Fujimi's 1/48 scale
Messerschmitt Bf 110 C-1

by Charles Whall



Messerschmitt Bf 110 C



Fujimi's 1/48 scale Messerschmitt Bf 110 C/D is available from Squadron.com



Introduction



This is the Fujimi 1/48 Bf 110C/D kit shown built as the C-1 variant from the Battle of Britain period.

Whenever building a kit, I always like to research what happened to the aircraft and its crew-particularly during the Battle of Britain. Unfortunately, reference material does not give any information regarding the fate of U8 + GL and its crew.

Even the excellent ‘The Battle of Britain Then and Now’ proved fruitless.





This C-1 carries the white nose and thin white band around the rear fuselage, common to many aircraft of this unit in the later stages of the Battle of Britain. The recess for ‘parking’ the rear machine gun has been faired over on this aircraft. The photo shows the first style of radio mast on the lower port fuselage, and the early style canopy clearly lacking the D/F loop remote control on the canopy windscreen port side, common to the C-1 sub-variant. The rear central Bordfunker’s canopy panel is a revised and updated version; the original fitted to C-1’s was fully enclosed and did not provide for the Bordfunker’s machine gun to be left in the firing position with the canopy fully closed. An armoured windscreen has also been fitted.





Construction



Detail Sets:

  • Eduard 48253 & various spare etch parts and wire,

  • Ultracast Bf109 spinners and props

  • Quickboost 1/72nd .303 Brownings

  • True Details wheels

  • Aeromaster Bf110 stencils 148-021

  • E-Z canopy masks (brilliant!!)

I made a number of modifications to the Fujimi kit. The rather bland cockpit/radio/gunner sections were enhanced with the excellent Eduard set. This included the handgrips and a miniscule MG15 crosshair, throttle/mixture levers etc. I painted the cockpit a dark grey to represent RLM66-most of my references seem to show this area as much darker than the usual RLM02-but that’s another argument! I added wire detail to enhance the gunner/radio area.



Click the thumbnails below to view larger images:

[../../photogallery/photo00007261/real.htm]

External parts included oil cooler flaps replaced in the open position, elevator trim tab actuators and oleo suspension. The wheel wells also received some extra attention since the kit is devoid of any detail here. I used my Dremel tool on the kit parts to open the holes into where the wheels would retract. Thin styrene sheet was used to reproduce the internal structure of this area-being careful to make sure the structure would fit within the wing area. I then placed the etched detail over the kit parts and fitted the wheel well assemblies in place. I also built the internal structure for the radiator, as the kit would have shown this as a large gap. Wells were painted RLM02 as per references.



Click the thumbnails below to view larger images:

[../../photogallery/photo00008535/real.htm]

I replaced the aerial sections on the lower fuselage with wire. The kit parts for the 7.9 MG17 guns in the nose were poor so I replaced them with two Quickboost 1/72 scale Browning machine guns, which I think do the job fine! The gunners’ MG15 was replaced with a Verlinden resin one.

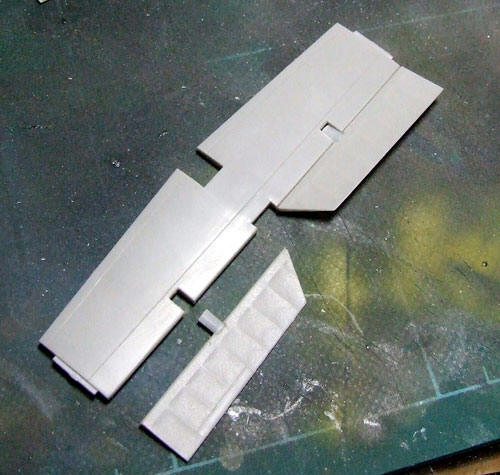

I repositioned the elevators by cutting off the kit parts, rebuilt the hinges with some styrene section and replaced the elevators in the raised/’parked’ position (yes, I know…guess who stuck the elevators on the wrong way round-not realising until I was about to fix the section onto the kit lol!)

The ailerons were cut and repositioned in order to replicate the way they rested naturally .







I replaced the kit spinners and props with the excellent Ultracast resin sets. When I offered them up to the engine section, they were quite a bit larger so I filed back the kit parts and the resin parts until they matched up-a relief I can tell you!

True Details resin wheels replaced the kit parts but I am unsure if the smooth tread was not used until later versions as most of my references show a radial tread on the tyres.

Hair was used for the radio Antennae wire with white glue for the isolators.

I made the base using Cedar and routed the edges. Static grass was used (I still cant work out how people get it to stand up!!), and I added a Verlinden starter cart and oil barrels.

In all, a great kit considering its age, but will certainly be outclassed by the new Eduard 110 family IMO. I am sure looking forward to those-they look superb!





Paint and Markings



Primed with Alclad grey, the model was painted using Gunze acrylics in an 02/71/65 scheme of the day fighting Zerstörer aircraft. I was glad my references showed this was not the usual splinter scheme normally associated with Luftwaffe aircraft of the period, but a more informal scheme.

Cockpit is RLM66, wheel wells are RLM 02, propellers RLM 70, spinners are 50/50 RLM 21/71. Nose and tail band are RLM 21 white-there seems to be another, partially over-sprayed tail band where the ‘U’ is situated but I didn’t include this. Other paints used were Vallejo/Model Air acrylics.







Exhaust stains were airbrushed using highly thinned black/brown Tamiya acrylics. Chalks were used for weathering/dirtying areas and a Prismacolour pencil for the paint chipping on walkway areas.

Prior to the application of decals the model was sprayed with Future floor wax. The kit decals went on without any problems and I used the Aeromaster Bf110 stencil set. Vallejo Model Color flat coat acrylic was used to seal the decals and give the model a flat finish. The kit swastikas were printed slightly out of alignment on the white/black sections but isn’t too bad.





Photography



Photos were taken using my Fuji Finepix 9500S using a sheet of white card as background.





I just experimented until I was happy with the results.





References



  • Aviation Signal Bf110 Zerstorer in Action Squadron Signal.030 (Jerry L Campbell)

  • The Messerschmitt Bf110 in Colour profile (John Vasco & Fernando Estanislau)

  • Warbird Modelling/Battle of Britain (Finescale Modeller Special Edition)





Additional Images



Click the thumbnails below to view larger images:

[../../photogallery/photo00005244/real.htm]
