IAR-81C

Special Hobby, 1/32 scale

Reviewed by Brett Green

Special Hobby's 1/32 scale IAR-81C is available online from Squadron.com

The IAR-80 was a Romanian WWII low-wing, monoplane, all-metal monocoque fighter and ground-attack aircraft.

When it first flew, in 1939, it was comparable to contemporary designs such as the German Messerschmitt Bf 109, the British Hawker Hurricane Mk.I, and the American Curtiss P-40B/Tomahawk Mk.I and superior to the Dutch Fokker D.XXI and Polish PZL P.24. However, production problems and lack of available armament delayed entry of the IAR 80 into service until 1941. It remained in front line use until 1944.

The Royal Romanian Air Force (ARR) had intended to replace its light strike and dive bomber aircraft for some time when the war started in 1941. The first role was to be filled by the IAR 37 (and later 38 and 39 models) but the plan was to fill the second role with the Junkers Ju 87. However, the Germans deferred and the ARR was left searching for a design. The modification of the existing IAR-80 as a dive bomber was seen as a reasonable option, easier than designing an entirely new aircraft; as well as having obvious production benefits.

The result was the IAR-81, a minor change to the IAR-80A models that were then in production, adding a hinged bomb cradle under the centerline to throw a 225 kg (496 lb) bomb clear of the propeller (many dive bombers used a similar system). Delivery consisted of a shallow dive from about 3,000 to 1,000 m (9,800 to 3,300 ft) with the speed around 470 km/h (290 mph). Pilots disliked the aircraft, as the drag from the bomb cradle seriously hampered performance.

Fifty were ordered in mid-1941 but after 40 had been delivered, 50 kg (110 lb) bomb racks were added under each wing. The wing racks could also mount 100L drop tanks, allowing the 81 to be used as long-range fighters.

The final stage in the IAR-80's wartime history was the 81C.

This version changed the guns once again, this time to the Mauser MG 151/20 which was replacing the MG FF/M in German service and had just been released for Romanian use. The order for the 81C was placed in May 1942.

The first order for 100 airframes was delivered, like all of the prior updates to the 81 series, with the centreline bomb rack removed to be used as fighters.

An additional order for 35 was placed in February 1943, and then another 15 in January 1944. These aircraft were primarily to replace losses in earlier models, while production of the Bf 109G ramped up.*

This is a rebox of the Azur FRROM kit, originally released in 2014.

It is great to see this model available again under the Special Hobby label.

Special Hobby's 1/32 scale IAR-81C comprises 197 grey styrene parts, 5 resin parts, one photo-etched fret of 26 parts, 6 clear styrene parts, plus decals for four subjects.

•
•
•
•
•

•
•
•
•
•

•
•
•
•
•

•
•
•
•
•

•
•
•
•

Thumbnail panels:

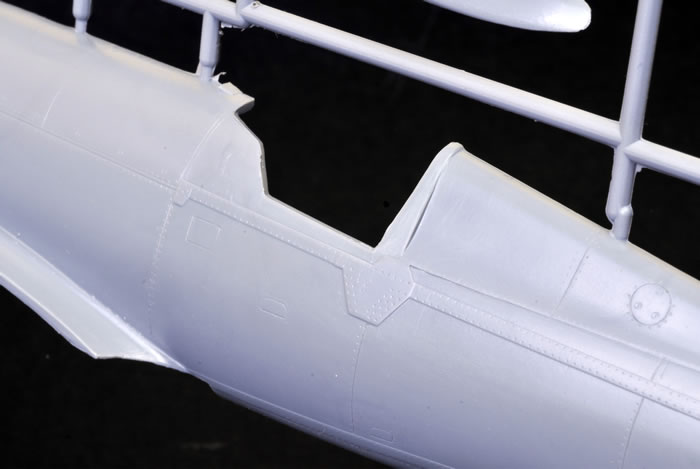

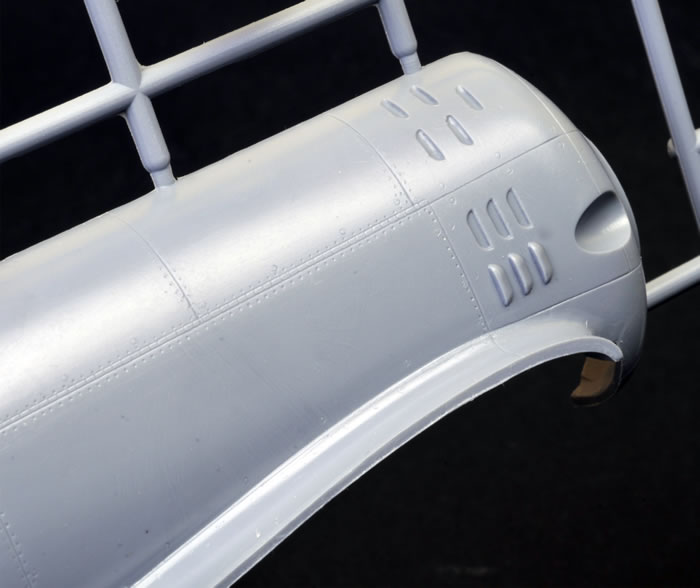

Surface features are really well done. Panel lines are crisp and finely recessed. Rivet detail is also present in selected areas, and specific parts of the model even feature screw heads with slot detail - nice! Raised and recessed vents, scoops, slots, hinges and bumps complete the sophisticated surface terrain.

The plastic is well presented but with a slightly rough texture to the touch. A few minutes polishing the main parts with Micro Mesh cloths will quickly deliver a silky smooth surface.

The cockpit is well equipped, mainly using plastic parts although a photo-etched harness is also included.

The framed cockpit tub will be trapped between the fuselage halves, which are also moulded with raised interior detail.

The instrument panel is broken down into three plastic sections with instrument dial decals broken down the same way. The gunsight features a resin body and two clear plastic lenses.

Flaps and ailerons are moulded as separate parts. The flaps may be extended and droped thanks to separate plastic hinges. The rudder and elevators are separate and may also be posed to taste.

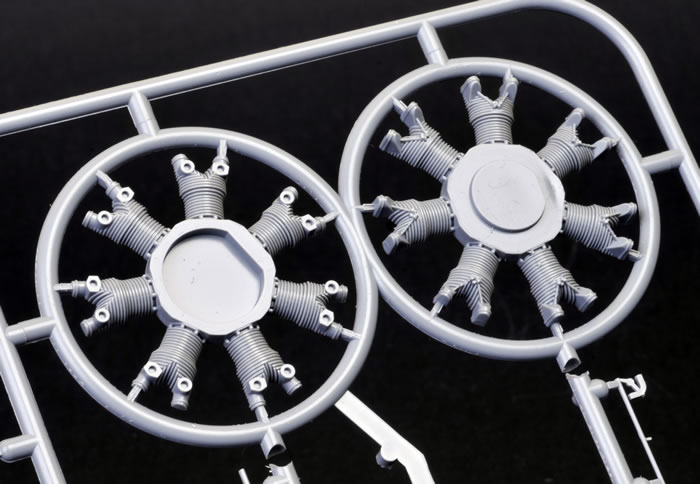

The engine is well detailed model in its own right with around 70 plastic parts plus resin exhaust manifolds.

A choice of standard and tropical filters is provided. Both of these are resin parts. A streamlined centreline bomb rack is also offered as an option.

The main undercarriage and tail skid are well detailed.

The model is completed with the addition of the propeller assembly with its separate blades and two spinner parts; and the canopy, which is thin and admirably free from distortion.

The windscreen and sliding sections are separate so that the canopy may be posed either open or closed.

Building the Kit

You might be inclined to believe that this will be an easy build due to the good detail, the narrow sprue attachments and the fine surface textures, but you should always remember that this is a limited run kit.

You won't have locating pins to guide you, and you should be prepared to take plenty of time cleaning up parts and test fitting before committing to glue. This applies especially to the engine and fitting the cowling.

Special Hobby's IAR-81C may demand more attention than a shake-the-box mainstream kit, but take your time and you should have an impressive result.

Colours & Markings

Four Royal Romanian Air Force (ARR) options are provided.

All five are finished in Olive Green upper surfaces and Light Blue Grey lowers, but this uniformity is relieved by the vivid yellow theatre markings plus variations of individual aircraft markings, kill marks and nose art.

The single decal sheet is designed by Radu Brinzan and printed by Cartograf with perfect registration and good colour saturation.

Special Hobby's 1/32 scale IAR-81C is an attractive and nicely detailed model.

If you have a couple of limited run kits under your belt, I don't expect this one will give you too many nasty surprises, and it will offer a colourful contrast to other models on your display shelves.

Highly recommended to experienced modellers.

*Background courtesy of Wikipedia

Thanks to Special Hobbyor the review sample.

Review Text & Images Copyright © 2017 by Brett Green
