Focke-Wulf Fw 190F-8
ProfiPACK Edition

Eduard, 1/72 scale

S u m m a r y

Catalogue Number: Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition
Scale: 1/72
Contents and Media:

99 grey and five clear styrene parts, one coloured PE fret with 21 parts, one plain PE fret with 42 parts, a pre-cut Kabuki tape canopy mask, and decals for five markings options..

Price:

Available online from:

Click for currency conversion.
Review Type: FirstLook
Advantages: The best 1/72 Fw 190F-8; very accurate, great detail, and attractively priced.
Disadvantages: None noted.
Conclusion:

Eduard’s Fw 190F-8 is the best in 1/72 scale by a long measure, and is a superb example of the 1/72 kit maker’s art. I think it represents great value and cannot recommend it highly enough.


Reviewed by Mark Davies


Eduard's 1/72 Fw 190 F-8Profipack Edition is available online from Squadron.com for only $16.99!



Background



No Introduction Necessary

The Fw 190 represented a watershed in fighter design; in particular it showed how a radial engine could be installed to rival in-line engine streamlining.

The design was rugged, fast, very manoeuvrable, and had a powerful armament; added to which were good pilot visibility and an ergonomic cockpit layout. It was unmatched as a fighter when first encountered by the RAF in 1941.





Readily adaptable to many roles, it had a wide range of weapon and equipment fits; whilst further development led to in-line engined versions and the Ta 152 series of fighters.

The A-8 was the most produced sub-type of this superlative design.

For those interested, a more detailed account can be found here at Wikipedia.




Previous 1/72-scale Fw 190A-5 Kits

There have been numerous Fw 190A & F series kits in ‘The One True Scale’ over the years, with F-8’s, twice from Airfix in 1978 (re-boxed by MPC) and again by Airfix in 2013, Heller, Italeri (re-boxed by Bilek, Tamiya & Zvezda), Hasegawa, Revell, ZTS Platsyk, and Mastecraft. There are probably others. The early Airfix offering was accurate and very good for its day, but the raised panel lines now date it. My pick of the remainder would, in descending preference, be Hasegawa, Airfix’s 2013 tooling, and then Revell. I would not bother with the others.

Hasegawa’s kits are accurate, have refined surface detail, and are problem free to build. Their weaknesses are basic cockpit and their usually a high retail price. Airfix counter-balances Hasegawa’s internal detail and price, but looses out slightly in surfaced detail and build refinement. Revell is cheap, quite buildable, reasonably detailed, but suffers from a poor quality canopy.

Excluding limited availability over-trees, this is Eduard’s first release of an Fw 190F, although it obviously shares much in common with the other superlative Fw 190A-series kits already released and previously reviewed here on HyperScale.





FirstLook



The Kit

The first thing that struck me was the delectable surface detail this kit exhibits. It has ultra-fine and consistent recessed panel lines, and has some of the best rivet detail I have encountered in the scale. Rivets have come back into modelling fashion, but unlike many brands following this trend, Eduard has managed to keep theirs unobtrusive and in the right places.

They have also avoided the another flawed practice common to Fw 190 kits, that of moulding the control surfaces with a heavy representation of the underlying framed structure. Instead Eduard’s simulate drum-tight fabric with rib-tapes, as they should.



  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
  • Eduard Kit No. 70119 - Fw 190F-8 Profipack Edition (Profipack Edition) Review by Mark Davies: Image
Thumbnail panels:
Now Loading



There is not a lot of room in a Fw 190’s cockpit in this scale, but Eduard has made a nice job of the tub, seat, and control column. Coloured PE garnishes the seat with a coloured PE harness, and also provides the intricate German rudder pedals. The side console faces with raised details are separate parts that fit to the tub. This allows for different versions, plus there is smooth option to mount coloured PE faces available in this Profipack Edition. All very thorough! The two-part instrument panel has raised detail and optional instrument decals, and again there are smooth equivalents to accept the very nice coloured PE option. Various other PE panels and a trim wheel all add to the high detail levels provided. There is a gun-sight molded in clear plastic and separate cockpit coaming.

The canopies are nice and clear with separate windscreen enabling them to be modeled open if wished. It is here we see an example of Eduard’s thoroughness; because the sliding canopy varied in width as it slid open it caused the Perspex hood to flex and subtly change shape, so the kit has open and closed alternatives for each style! There is an armoured headrest and brace to mount inside the canopy, and a decaled stencil warning of the quick release explosive charge to add to the headrest. A pre-cut canopy mask is included to aid painting.





The fuselage halves enclose the cockpit tub, firewall and the exhaust ejector stubs that project out of the fuselage side openings. The engine is a more than adequate relief molding with separate reduction gear housing.

The panel over the fuselage MG131’s has the gun muzzles moulded separately, and these protrude convincingly into the upper cowl panel’s twin blast troughs. This and the cowl panel fit once the fuselage halves are joined together. The rudder is provided as a separate item.

The wings are split between their upper and lower surfaces as you would expect. To the lower wing section is added a wing spar, some structural detail in a choice PE or styrene, some piping, the wing-root MG151 cannons, and the wheel well roof. The underside exhausts stubs are provided as an insert in the bottom cowl panel molded with the lower wing, with a separate pipe run for cylinder #8 to fit and exit through its own hole in the panel. The separate ailerons can be attached once the upper wing surfaces are in place.

With the wings attached to the fuselage the combined oil-cooler/cowl lip and its armoured ring can be attached to complete the engine cowl.  The prop, its spinner and cooling fan finish off the engine side of things.

The finely moulded tailplanes are two single moldings with integral elevators, the balance horns of which are unattached to the horizontal stabilizer for added realism (the gap is so fine it’s easy to miss without magnification).
There is an ETC-501 centerline pylon for which blind locating holes in the lower wing need to be opened earlier in construction. This could carry either the drop-tank or bomb, but the instructions only mention a drop-tank, and none of the supplied markings options are shown with this feature.

The undercarriage is very nicely represented with good levels of detail. The moulded torque-links can be replaced with the more refined PE items supplied. A choice of treaded or smooth tyres for the main wheel is also provided for. Brett Green’s build review of the similar Fw 190A-8 kit here on HyperScale reported that The landing gear legs are also well detailed, but I found them tricky to position as the main locating hole is quite shallow. Patience and repeated test-fitting is the answer here.”

All that is left to mention is a pitot for the starboard wing, ventral antenna (choice of PE or styrene), DF-loop, and boarding step.





The F-8 was of course the ‘Jabo’ or fighter-bomber equivalent of the A-8, and so Eduard has included an underwing weapons sprue and associated PE fret (with bomb fins) not found in the Fw 190A-series kits.  Underwing stores included are listed below (items marked * are standard with all of Eduard’s Fw 190 kits):

  • AB500,

  • SC500,

  • AB250,

  • SC250*,

  • SD250,

  • 4 x SC50,

  • External fuel tank*, and

  • 10 x Panzerblitz Rockets with a choice of long or short-railed launch pallets.

Given it relative complexity, it seems that the less-detailed Hasegawa kit will probably beat the Eduard kit for ease of assembly. However, Brett Green’s build article of the similar Fw 190A-8 mentions the very good fit and general ease of assembly, provided test-fitting is practised. His article included a couple of useful pointers about removing a mounting lug when fitting the upper cowl panel, and spreading the fuselage slightly to meet the wing roots. I would also add to pay careful attention to the instructions, as there are several surplus parts that appear similar to those required; this being the result of mould engineered for multiple versions.




Marking Options

The decals provide for five markings options, along with quite extensive stenciling. Each scheme is illustrated in colour with a single page of four-view drawings, whilst the stencil locations are identified in a separate page of their own.

The machines covered are:

  • Black 11, 5./SG 77, Cottbus, Germany, 1945





  • Red 2, SG 2, Hungary, 1945





  • White 1, 1./SG 4, Piacenza AB, Italy, 1944





  • Yellow 14, SG 2/SG 10, Neubiberg, Germany, 1945; and

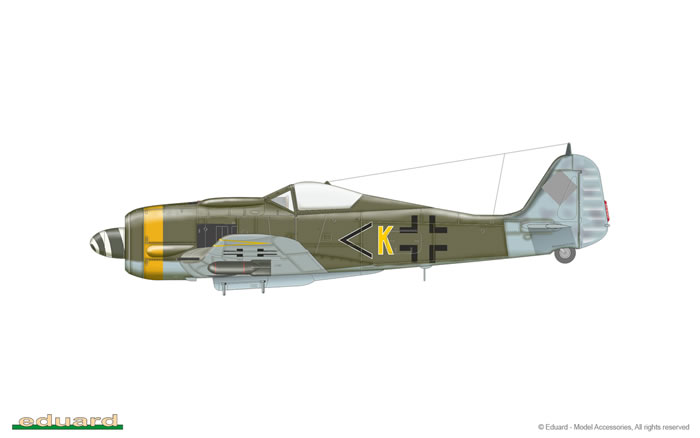

  • Yellow K, SG 10, Ceske Budejovice, Czechoslovakia, 1945.









The decals appear to be of excellent quality. Nazi swastikas are provided as two-part decals on all sheets, with complete swastikas included in a corner that can be cut off for markets that do not permit its display.





Eduard’s website includes a single image of the completed model in the markings of White 1, 1./SG 4, Piacenza AB, Italy, 1944.







Conclusion



Eduard’s Fw 190F-8 is the best in 1/72 scale by a long measure, and is a superb example of the 1/72 kit maker’s art. I think it represents great value and cannot recommend it highly enough.

Thanks to Eduard for the sample


Review Text Copyright 2016 by Mark Davies
Page Created 26 December, 2016
Last updated 26 December, 2016
